The last 20 seconds of a YouTube video decide whether a view becomes a session. That’s the only window where YouTube lets you place clickable elements directly on the frame — and most creators either skip it or slap elements over an outro that was never designed to hold them.
This guide covers what end screen elements actually exist, the exact sizes and safe zones to design around, how to build an outro that makes the elements land, and where to get free animated elements that do the pointing for you.
What End Screen Elements YouTube Actually Supports
End screens are added in YouTube Studio after upload, and the menu is short. Four element types:
- Video or playlist — the workhorse. You can point it at a specific video, your most recent upload, or let YouTube pick “best for viewer” (usually the right call — the algorithm knows what this viewer will click).
- Subscribe — a circular element showing your channel avatar. No custom artwork; it’s always the round avatar.
- Channel — promotes another channel, with a blurb. Useful for second channels and collabs, rarely otherwise.
- Link — an external URL, available only to channels in the YouTube Partner Program with advanced features enabled. If you don’t see it, that’s why.
The constraints: the video must be at least 25 seconds long, end screens live in the last 5–20 seconds, you can place up to four elements, and at least one must be a video or playlist. Each element can be timed individually inside that window, so they don’t all have to pop at once.
Dimensions, Timing Window, and Safe Zones

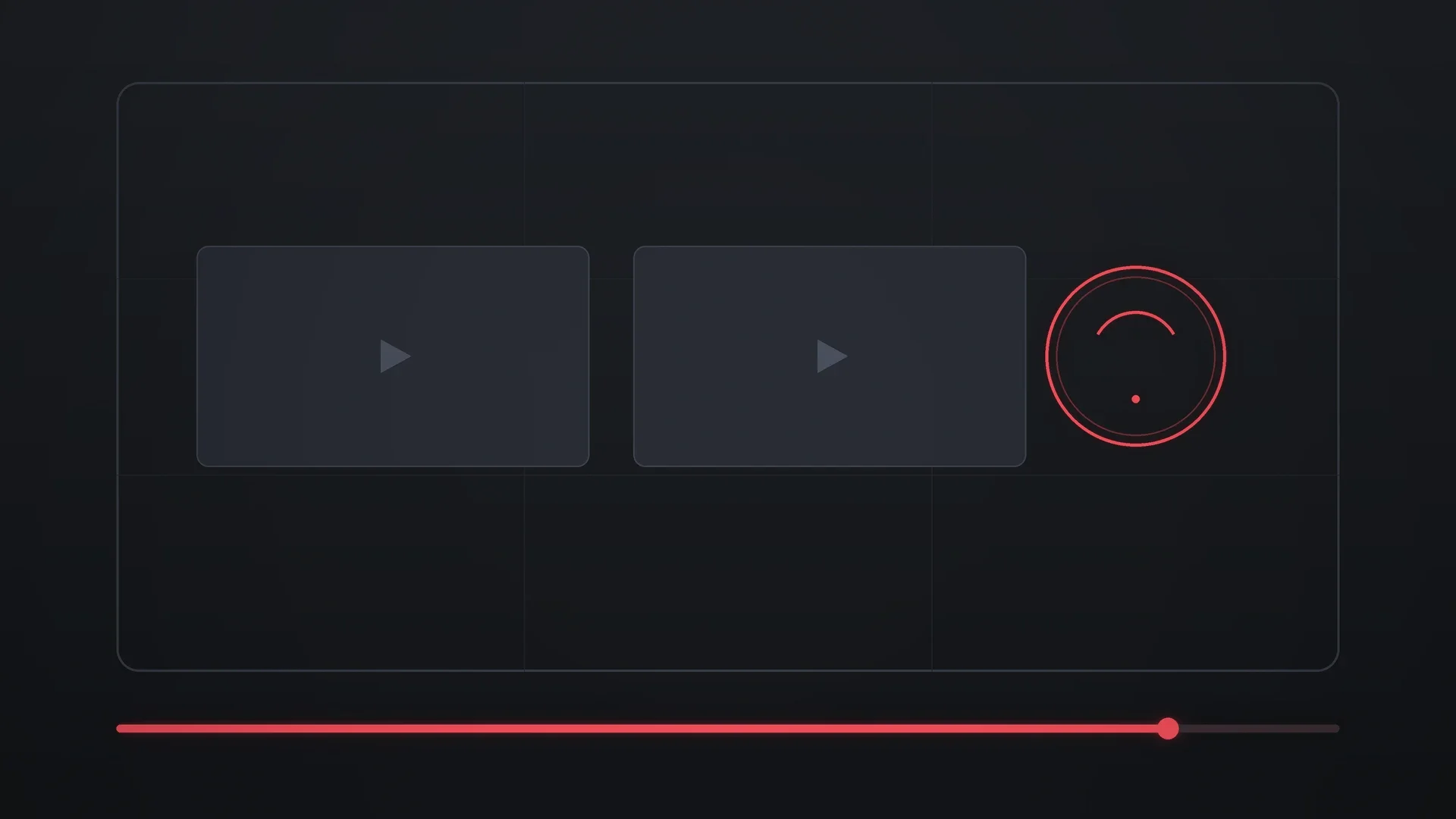

Design your outro on a 1920×1080 canvas — YouTube’s end screen editor positions elements on that reference frame regardless of your upload resolution.
The sizes to plan around:
- Video/playlist elements render as 16:9 rectangles roughly a third of the frame wide. Two of them side by side, with margins, consume most of the horizontal space.
- The subscribe element is a small circle, roughly 10% of frame height. It’s easy to lose against a busy background.
- The bottom edge belongs to the player: progress bar, controls, and (on mobile) gesture areas. Keep the bottom 10% of the frame clear of anything you care about.
- Corners and edges: the “More videos” wall that appears at the very end, plus captions if enabled, land low in the frame. Center-left and center-right are the safest real estate for your placeholder graphics.
Mobile is the reason to be conservative. Elements render much smaller on a phone, and a mobile tap target that overlaps your own baked-in text becomes a mis-tap. The practical rule: design placeholder zones for two video elements plus a subscribe circle, leave 5% breathing room around each, and don’t put anything essential where an element will cover it.
One habit worth stealing: build the outro as a reusable template with empty framed zones where elements will sit. You design it once, and every upload gets a consistent, element-ready last 20 seconds.
Design the Last 20 Seconds So the Elements Land
End screens fail for a predictable reason: the video ends — hard cut, music stops, viewer’s thumb is already on the next thumbnail — before the elements have a chance. The fix is editorial, not technical:
- Leave visual room. Shrink your talking head to a corner or cut to a simpler backdrop for the final 20 seconds. Elements over a full-frame busy shot look like pop-up ads.
- Keep talking. “If you liked this, the video on screen now goes deeper” outperforms silence. The moment your voice stops, the viewer’s attention contract ends.
- Duck the music, don’t kill it. Drop the track 6–10 dB under your voice and let it run to the end. Dead air reads as “video over, leave now.”
- Two elements beat four. One video (set to “best for viewer”) plus the subscribe circle is a decision a viewer can make in three seconds. Four options is a menu, and menus get closed.
The same thinking applies to the front of the video — the channel intro walkthrough covers building a branded open that sets up this kind of consistent packaging.
Free Animated Elements That Sit Under the Real Overlays
Here’s the detail that trips people up: YouTube’s elements are injected by the player, on top of your video. Your baked-in graphics can’t be the clickable element — but they can do something the injected elements can’t: animate attention toward them.
- An animated subscribe button placed exactly where the real subscribe element will land turns a passive circle into a call to action. The animated subscribe button element is free, includes the click animation, and comes in formats that drop straight onto an editing timeline.
- Framed placeholder zones — thin borders, soft glows, corner brackets — telegraph “something clickable lives here” a second before the element fades in.
- A lower third with your posting schedule or a short handle fills the space without competing with tap targets.
Timing tip: start your baked-in animation about one second before the element’s start time in YouTube Studio. The motion draws the eye, then the clickable element arrives exactly where the viewer is already looking.
Export So the Overlay Area Stays Crisp
Thin borders, small text, and animated buttons are high-frequency detail, and YouTube’s re-encode is hungry. Give it a clean source: export at your edit resolution or higher, at a generous bitrate — the exact numbers per resolution and frame rate are in the YouTube export settings guide. A 4K upload also buys your end screen a better codec tier on YouTube’s side, which keeps fine graphic edges from smearing on the very frames where you want taps.
The Offline Case: When Your End Screen Vanishes
End screens are a player feature, not part of your video file. The moment the video plays anywhere that isn’t YouTube’s player, every element evaporates:
- the MP4 gets downloaded and shared,
- the video is screened at an event or runs on a booth loop,
- it’s re-uploaded or embedded somewhere that strips interactive layers.
What’s left is exactly the pixels you exported. Which means the only “clickable” thing that survives every context is a QR code baked into the end card — it lives in the frame itself, so it works on a conference projector as well as it does in an embed. Generate one at high resolution with QRocket’s free QR code generator (the SVG export scales cleanly to any frame size), park it in a corner of the end card outside the element zones, and hold it for the full final 10 seconds. The sizing, contrast, and timing rules for making it scannable are in How to Add a QR Code to a Video.
For videos that live only on YouTube, skip the code — the elements are strictly better there. For anything with a second life offline, the QR is the insurance policy.
FAQ
How long does a YouTube video need to be for end screens?
At least 25 seconds. The end screen itself occupies the last 5–20 seconds of the video, and you choose the exact window and per-element timing in YouTube Studio’s end screen editor after upload.
What size should I design an end screen template?
Design at 1920×1080. Plan for video elements about a third of the frame wide, a subscribe circle around 10% of frame height, and keep the bottom 10% of the frame clear for the progress bar and player controls. Leave margin around each element zone so mobile taps don’t collide with your artwork.
Do end screens show on mobile?
Yes — end screens display in the mobile apps, just smaller and easier to mis-tap. That’s the argument for fewer, larger elements and generous spacing: a layout that works on a phone works everywhere, while a dense four-element desktop layout falls apart on a 6-inch screen.
Why don’t my end screens appear when the video plays somewhere else?
Because elements are injected by YouTube’s player rather than encoded into the file. Downloads, event screenings, and some embed contexts show only your exported pixels. If a video will play outside YouTube, bake the essentials into the end card itself — a readable URL or a QR code — so the outro still has a call to action.
